ORDINATOR keyboard controller board

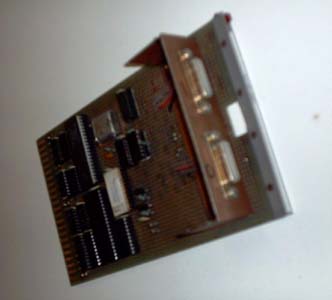

keyboard controller board

The keyboard controller board of the ORDINATOR contains a 8085 processor with its own on-board ROM and RAM and interfaces to two keyboards. Under TS, the keyboards are coupled with the first and second video displays and known as the VIDEO0 and VIDEO1 devices.

The ORDINATOR keyboard controller board is also described on page 15 of the book "THE ORDINATOR PROJECT".
